TECHNICAL DATA

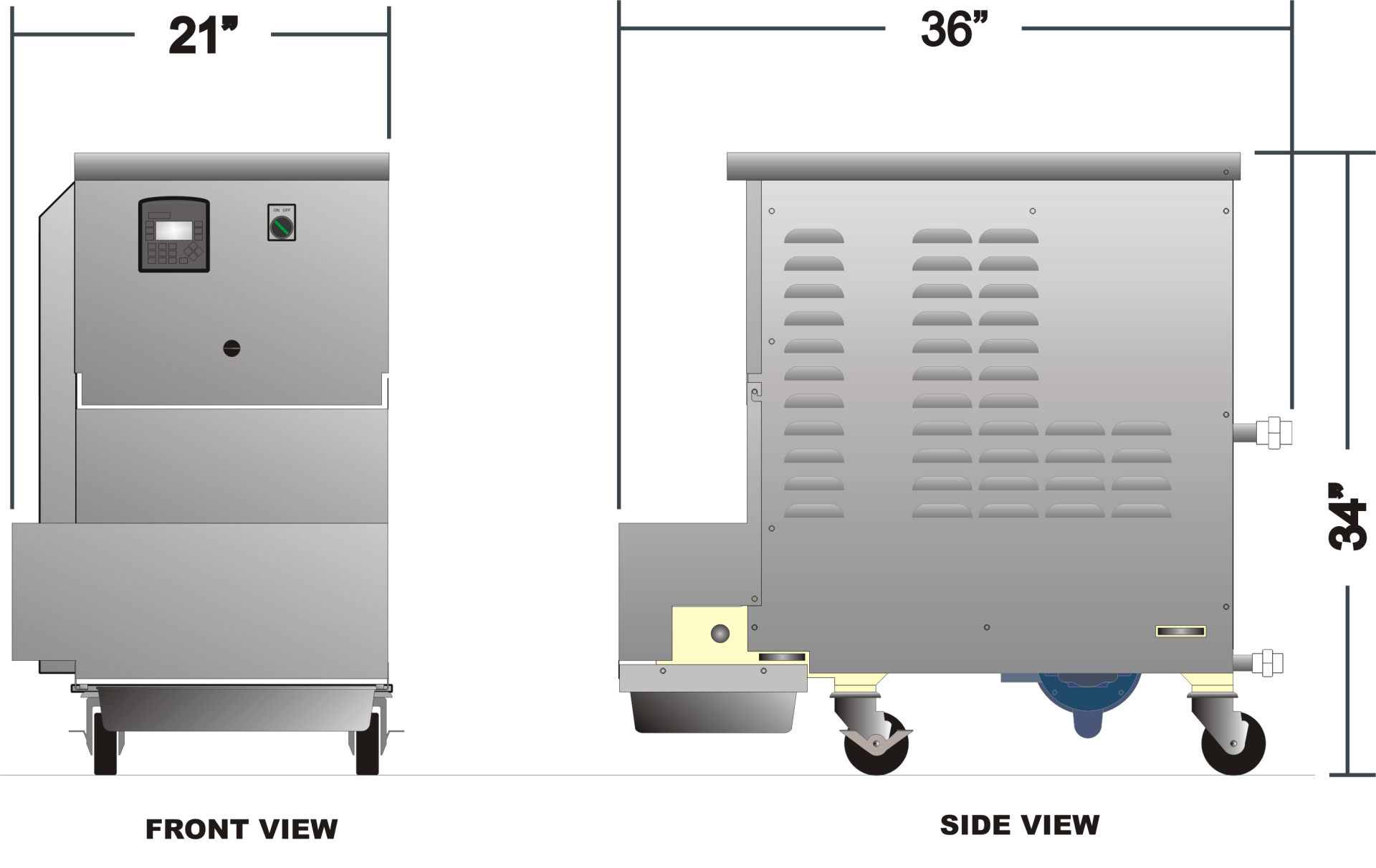

• Size – 21” w x 36” l x 34” h.
• Flowrate – 3 to 5 GPM (depending on filter/pump size)
• Power Requirement – 120 VAC, 60Hz single phase power
• Power Usage – Approximately 720 watts (6 amps) continuous
KEY FEATURES

• HEAVY DUTY INDUSTRIAL DESIGN
• FULLY AUTOMATIC OPERATION - PLC CONTROLLED
• CONTINUOUS FILTRATION WHILE COOKING
- No transfer of oil to remote tankage required
- Equipped with auto-off timer for end-of-shift polishing
- Dry-solids discharge – minimal oil loss in discharge
- Minimal operating expense
- Easy to service
- Uses 150 yard roll of disposable filter paper
- Pump only “sees” clean oil – no solids get to the filter pump
BENEFITS

• Extends oil life
• Continuous filtration results in clean oil all the time
• Capable of removing fines down to 5 microns
• Clean oil maintains food color and flavor qualaities
• Continuous filtration slows the build-up of FFA's (free fatty acids)
• Eliminates "flavor transfer" to varying products
